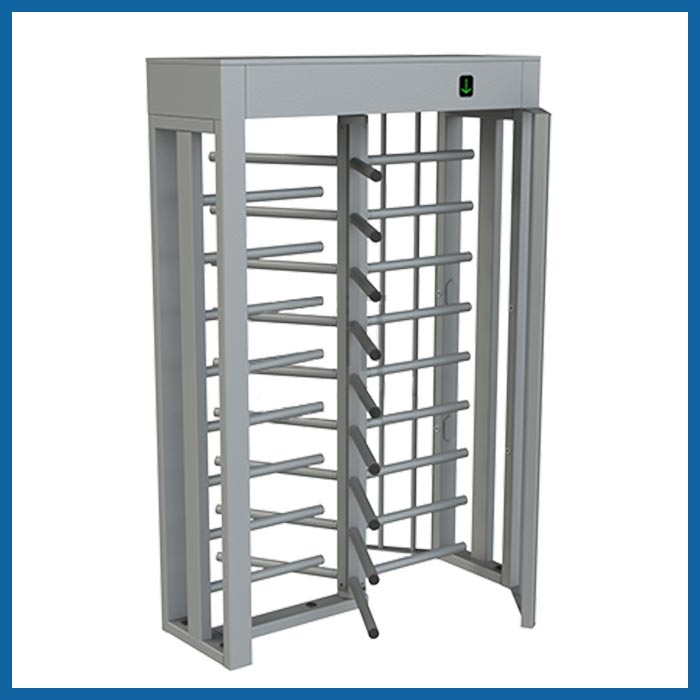

AKT - 300

Material	Main Body: 304 - Stainless Steel (Op. 316 Quality) Arms: 304 - Stainless Steel
Standard Dimensions	125 x 150 x 220 cm (W x L x H )
Rotor Systems	With rotating control; tripod arms are positioned at 90 degrees
Rotation Control	Self centering and smooth operation is handled by means of spring and hydraulic damping mechanism
Energy / Operating Voltage	110 - 240V AC 50/60 Hz (+/- %10) 24V DC
Control Systems	All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs.
Passage Direction	Bi-Directional operation feature. Entrance-Exit
Indicators Features	Entrance - Green Arrow / Exit - Red Cross
Flow Rate	33 Passage / Minutes / Normally Standard
Number of Passage Lanes	Single Unit
Operating Temperature	-20° C / + 50° C
IP Rating	IP 54

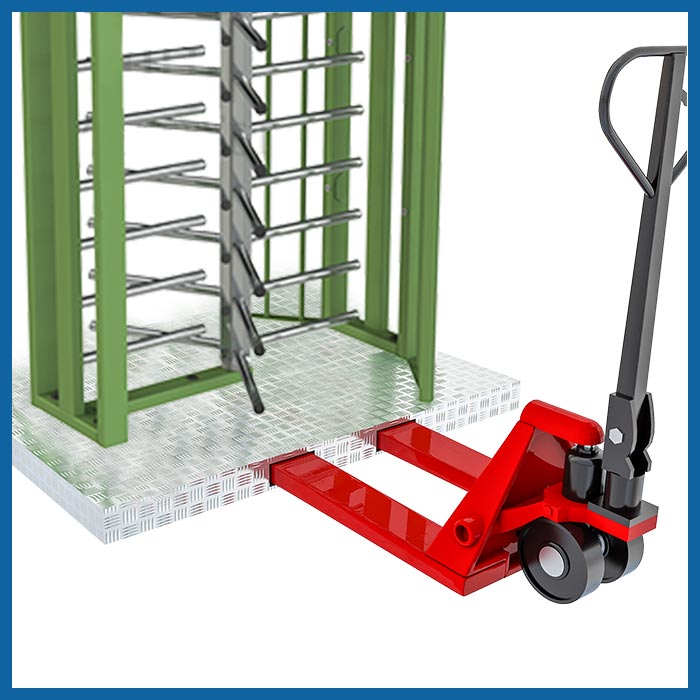

Floor Mounting Plate

► Ease of modular installation with anti-skid bottom platform.

► Ease of installation in difficult ground conditions.

► Front and rear ramp system for easy access.

Manuel Control Box - Fixed

► Manual control box in the upper part of the turnstile, inside the locked compartment.

► Control of “Input, Output, Emergency” modes with security personel in emergency situations.

Button Control Unit - Independent

►BT-1 and BT-2 type options, usually used in security booths or security rooms, for remote control of “In, Out, Emergency” modes.

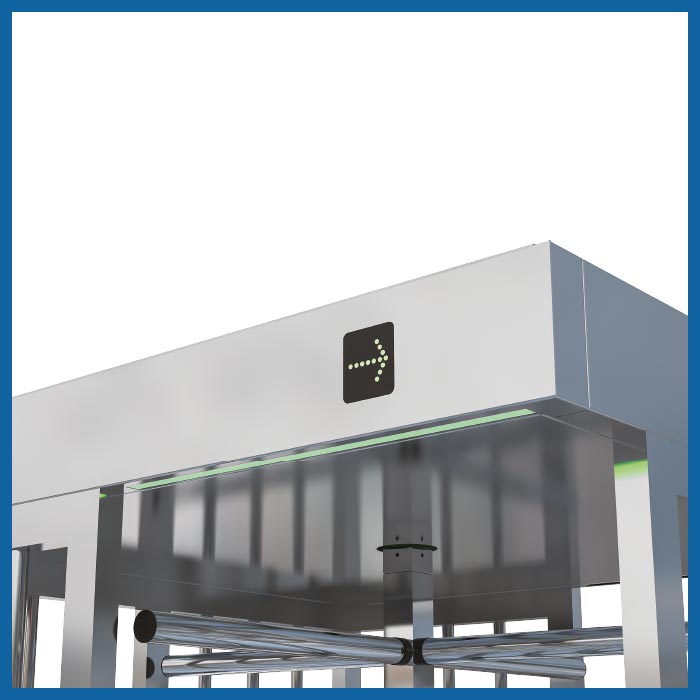

Top Panel Led Light

►Indicator external LED lights on the top of the turnstile are used for a more visual and distinct transition in the ceiling.

►The LED light system is blue in standard standby position and it provides more visual and clear transition control in green and red combinations as soon as transition occurs.
