| Material | Main Body: AISI- 304 - Stainless Steel - Scotch Brite (Op. AISI-316 Quality) Tripod Arms: Q32 mm dia - Stainless Steel - Arms can be dismantled or mounted one by one separately. |
|
| Standard Dimensions | 28 x 45 x 137 cm ( W x L x H ) |
|

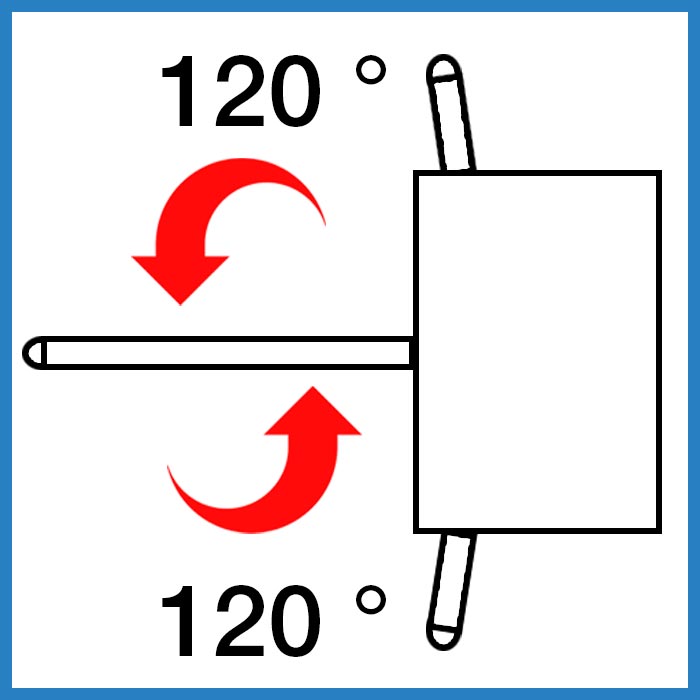

| Rotor Systems | With rotating control; tripod arms are positioned at 120 degrees. |
|
| Rotation Control | Self centering and smooth operation is handled by means of spring and |
|
| Energy / Operating Voltage | 110 - 240V AC 50/60 Hz (+/- %10) 24V DC |
|
| Control Systems | All inputs are opto-coupler protected. Controlled by dry contact or grounding input. |
|
| Spraying Amount | 2 sec ( 3-5 ml spraying ) |
|
| Disinfectant | Turnstile disinfection systems should be used only in the liquid alcohol-based disinfectant. |
|

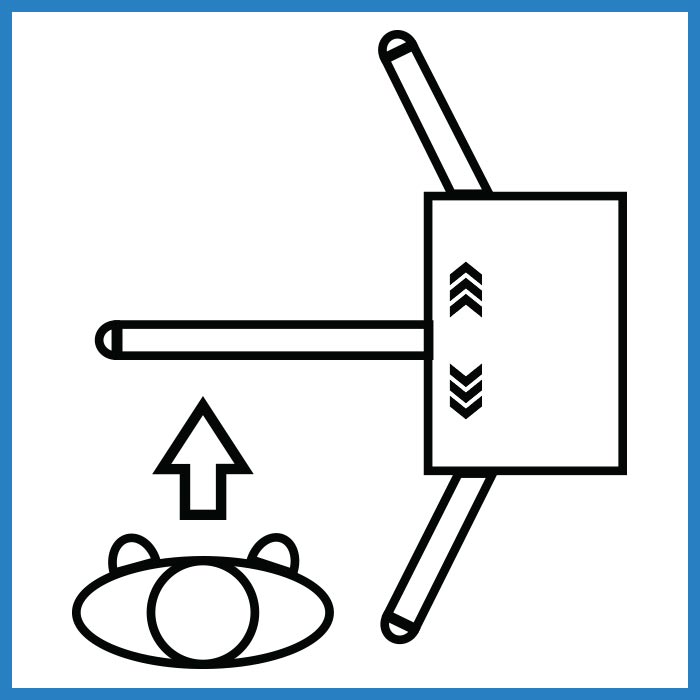

| Passage Direction | Bi-Directional operation feature. Entrance-Exit. |
|
| Number of Passage Lanes | Single Unit |
|
| Operating Temperature | -20° C / + 50° C |
|
| IP Rating | IP 54 |
|
