AKT - 29

Floor Mounting Plate

► Ease of modular installation with anti-skid bottom platform.

► Ease of installation in difficult ground conditions.

► Front and rear ramp system for easy access.

Separator

► Spacebar of the central portion, optionally, glass, plexiglass, to close with dekota types of material properties are available.

►Ability to shorten optional intermediate pipes.

Passage Tracking Sensors

► Sensors can be deployed on the turnstile in accordance with required functions such as real-time passage signal or unauthorized passage alarm.

► 2 Sensors for one passage is available for bi-directional operation.

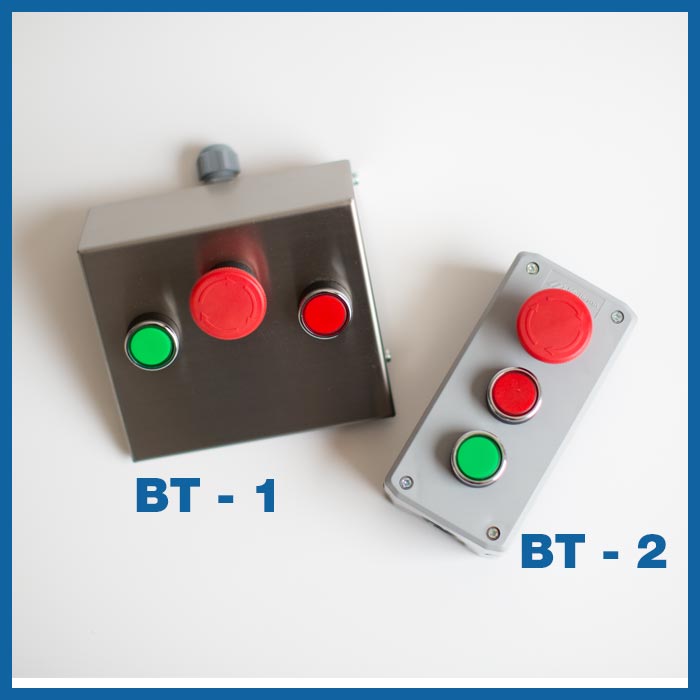

Button Control Unit

► Provides remote control of “Entry - Exit - Emergency” modes of security personnel and consultation areas.

► BT-1 and BT-2 type options

Counter

►8-digit segment display is available.

►To be able to keep the memory of a power failure, be able to count on dry contact and voltage, reset capability.

► 10 years battery life.

Remote Control

► 1 Unit, working with 23V type 12V battery.

► 433.920MHz working frequency.
( Legal ISM band for Turkey and Europe )

Receiver Unit

► 12 / 24V AC or DC supply.

► 2 relay outputs 7A 220V. (Dry Contact)

► Momentary or Toggle relays with Jumper.

Thermostat

► It stabilizes the efficiency of the working conditions of the mechanical and electronic structure inside the turnstile in extremely cold environments.

Protection Case

► For the outdoor conditions, a special protective cover can be produced in a transparent structure that is suitable for the size of the turnstile.

Card Pass Applications

► Special cover designs are appliedto make card reader units of different types and sizes appear integrated on the turnstile.

Fingerprint / Handprint Reader Applications

►Special cover designs are applied to make fingerprint and handprint reading units of different design and size appear integrated on the turnstile.

Face Recognition Applications

► Special cover designs are applied to make face reading units of different design and size appear integrated on the turnstile.

Barcode Reader Applications

► Special cover designs are applied to make barcode reading units of different design and size appear integrated on the turnstile.

Material	Main Body: AISI- 304 - Stainless Steel - Scotch Brite ( Op. AISI-316 Quality) Tripod Arms: Q32 mm dia - Stainless Steel - Arms can be dismantled or mounted one by one separately.
Standard Dimensions	25 x 82 x 105 cm ( W x L x H )
Rotor Systems	With rotating control; tripod arms are positioned at 120 degrees.
Rotation Control	Self centering and smooth operation is handled by means of spring and hydraulic damping mechanism.
Energy / Operating Voltage	110 - 240V AC 50/60 Hz (+/- %10) 24V DC
Control Systems	All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs.
Passage Direction	Bi-Directional operation feature. Entrance-Exit
Indicators Features	Entrance - Green Arrow / Exit - Red Cross
Flow Rate	30 Passage / Minutes / Normally Standard
Number of Passage Lanes	Single Unit
Operating Temperature	-20° C / + 50° C
IP Rating	IP - 54
